031 Type
![]() |
|||||||||

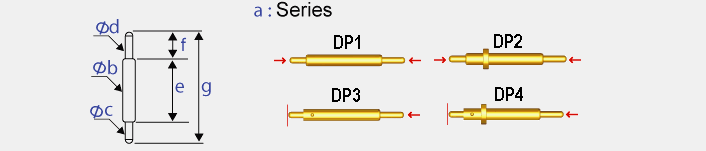

ID | Minimum Pitch | PN | a | Øb | Øc | Ød | e | f | g |
1 | 0.4p | DP1-031057-FB02 | DP1 | 0.31 | 0.15 | 0.15 | 4.00 | 1.10 | 5.70 |
2 | 0.4p | DP1-031058-DB01 | DP1 | 0.31 | 0.15 | 0.15 | 4.00 | 1.15 | 5.80 |
3 | 0.4p | DP1-031058-FB01 | DP1 | 0.31 | 0.15 | 0.15 | 4.00 | 1.15 | 5.80 |
4 | 0.4p | DP1-031072-FF01 | DP1 | 0.31 | 0.15 | 0.17 | 5.00 | 1.70 | 7.20 |
Semiconductor Probes
